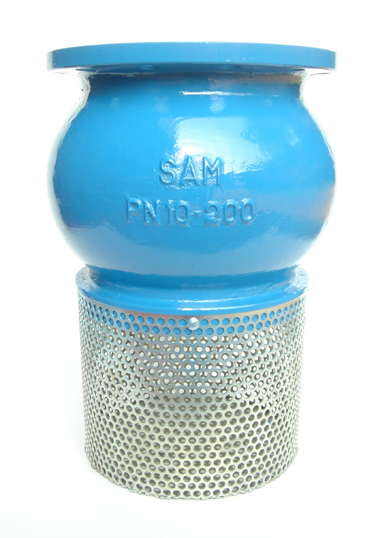

Foot Valve

Technical Characteristics

  • Operates in any position from horizontal to vertical ascending
  • Minimum head loss
  • Silent, reliable sealing and compact
  • Exceptional robustness
  • Does not generate hammering

Description

  • Closing system : Long back axial guiding for reduced displacement
  • Sealing guaranteed by a flat seal
  • Return spring

Description

Materterial

Parts Materials
Casing Cast Iron, Ductile Iron, Stainless Steel
Ring Bronze
Guide Cast Iron, Ductile Iron, Stainless Steel
Spring Steel
Seal EPDM
Head valve Cast Iron, Ductile Iron, Stainless Steel
Stem valve Stainless Steel
Screw Stainless Steel
Strainer Gavanized Steel



Dimensions



mm
inch
80
3
100
4
125
5
150
6
200
8
250
10
B 200 220 254 262 343 406
D 147 176 204 210 296 395
E 218 265 333 350 483 572
