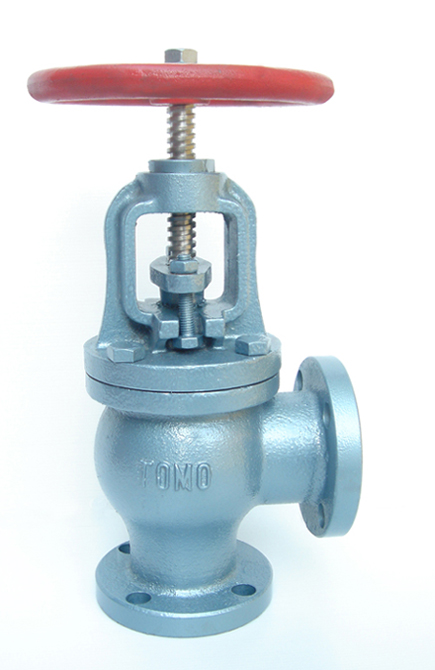

Angle Valve

  • Bolted bonnet
  • Outside screww & yoke
  • Rising stem
  • Flanged ends
  • Solid wedge disc
Categories: , Tags:

Description

Materterial

Parts Materials
Body Cast Iron, Ductile Iron, Stainless Steel
Bonnet Cast Iron, Ductile Iron, Stainless Steel
Stem Stainless steel
Disc Cast Iron, Ductile Iron, Stainless Steel
Disc seat ring Bronze, Stainless Steel
Body seat ring Bronze, Stainless Steel
Lock nut Bronze
Gland Cast Iron, Ductile Iron, Stainless Steel
Gland packing Asbestos graphite
Handwheel Cast Iron, Ductile Iron, Stainless Steel
Yoke bush Brass
Gasket Asbestos joint sheet
Gland bolt / nut Steel, Stainless Steel
Bonnet bolt / nut Steel, Stainless Steel



Dimensions

mm

inch

50
2
80
3
100
4
125
5
150
6
200
8
250
10
300
12
350
14
400
16
L 108 133 160 178 203 247 318 340 362 407
H 310 426 450 600 560 680 870 1050 1290 1650
D 160 240 290 350 350 410 410 440 440 550
